VSC/ SAO 127MM” 'BRIGADIER GENERAL RICHARD PIERCE' EQ MOUNTED REFRACTOR COMPONENT SCHEMATICS

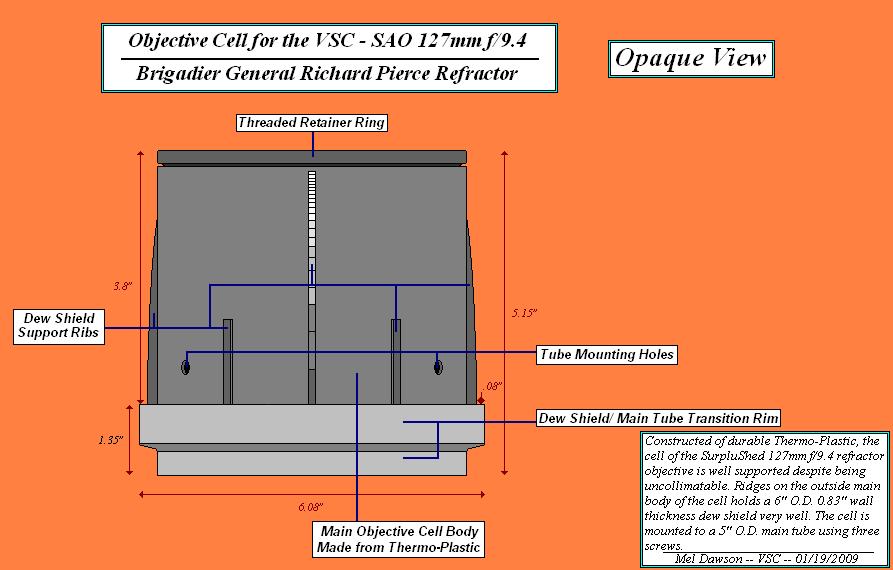

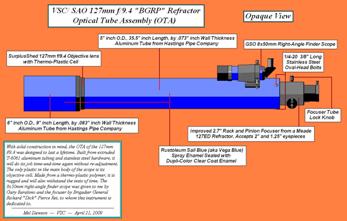

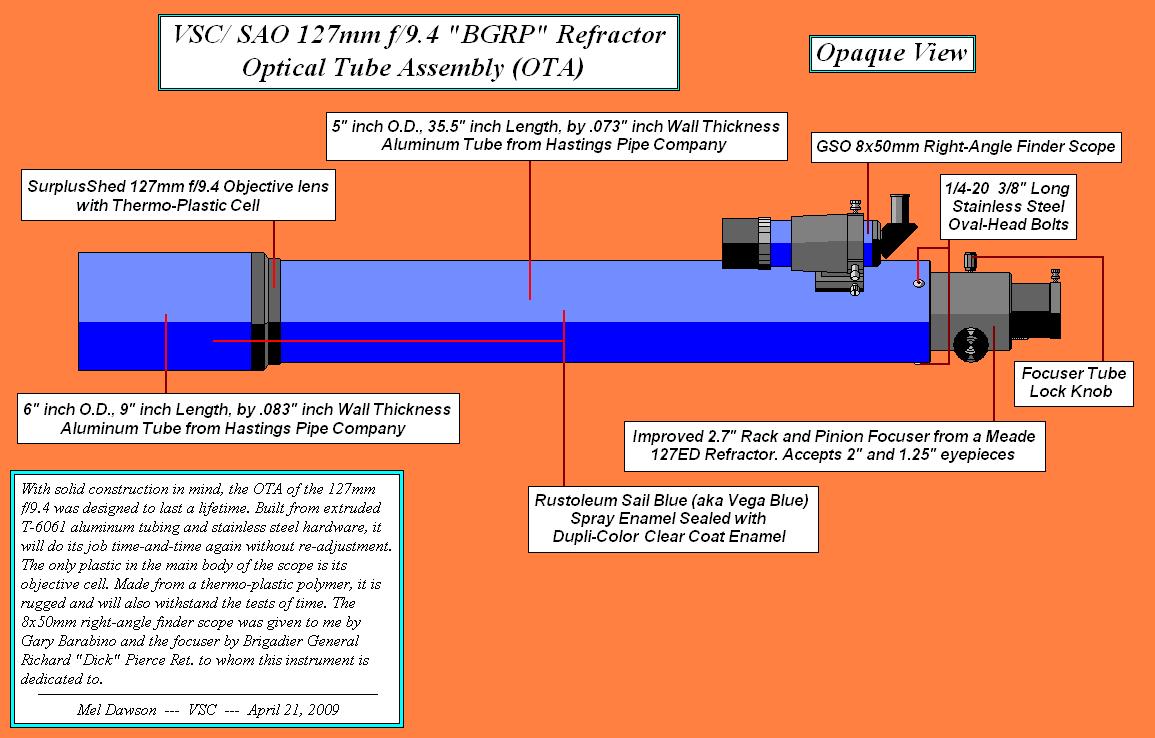

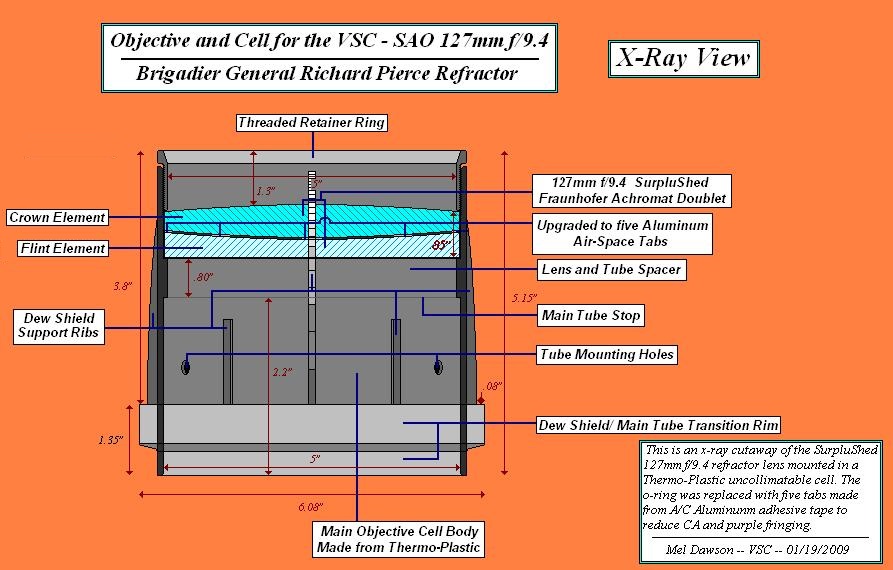

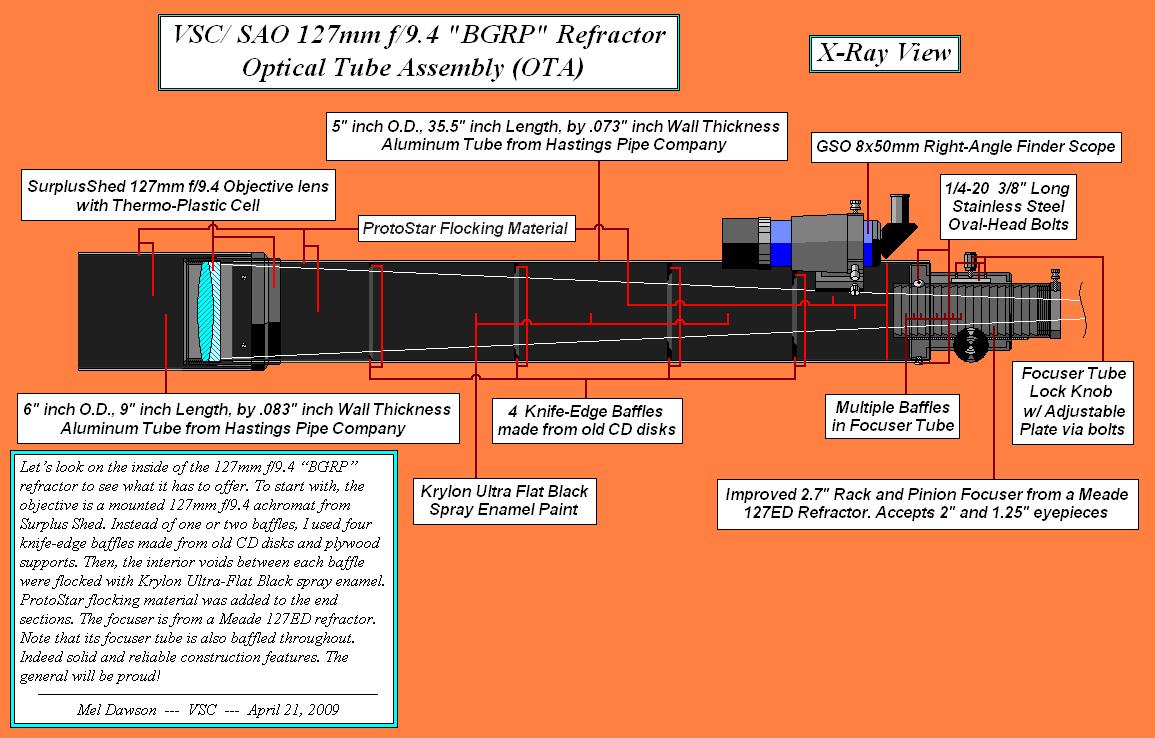

SurpluShed Mounted 127mm f/9.4 Refractor Objective (Opaque) SurpluShed Mounted 127mm f/9.4 Refractor Objective (Xray) SAO 127mm f/9.4 BGRP Refractor OTA (Opaque) SAO 127mm f/9.4 BGRP Refractor OTA (Xray)

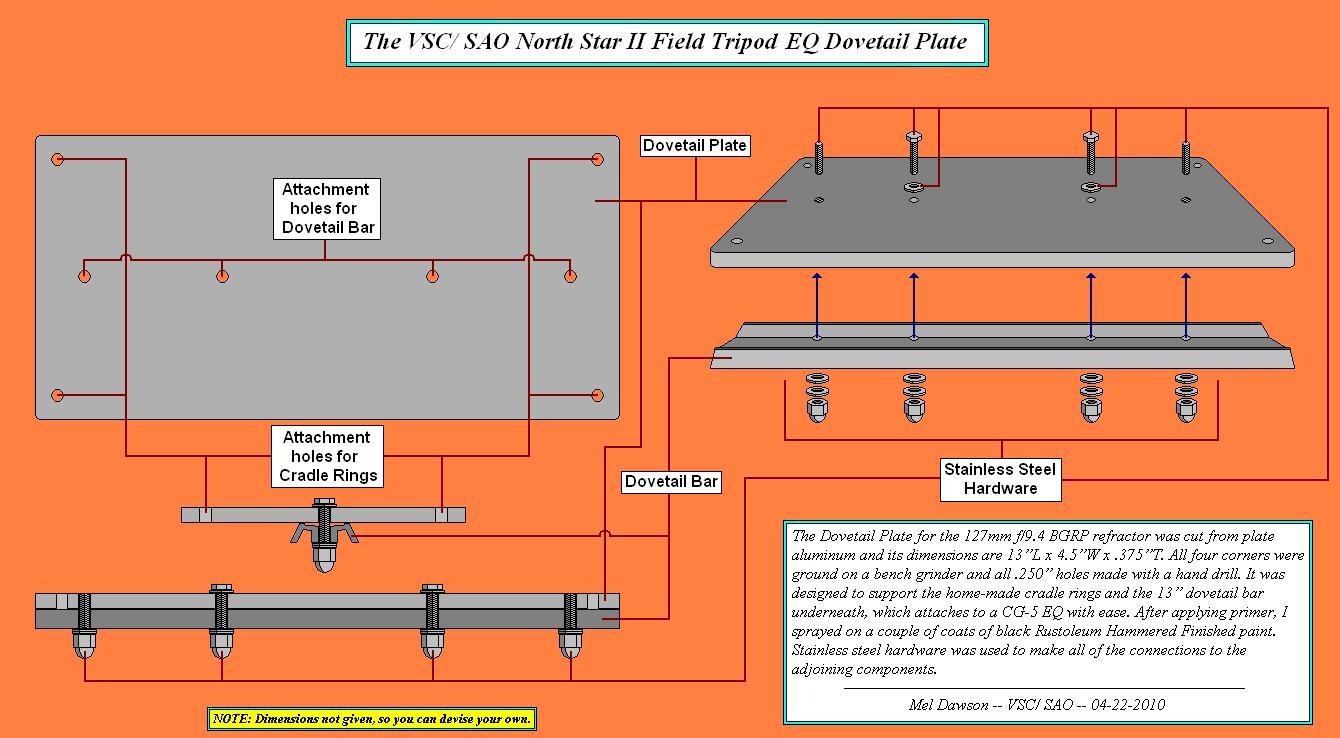

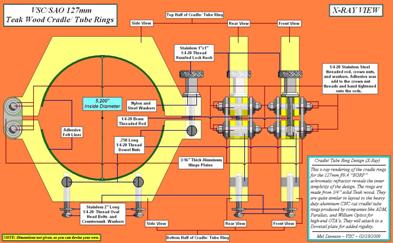

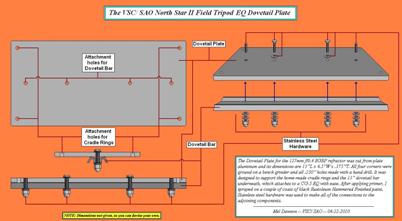

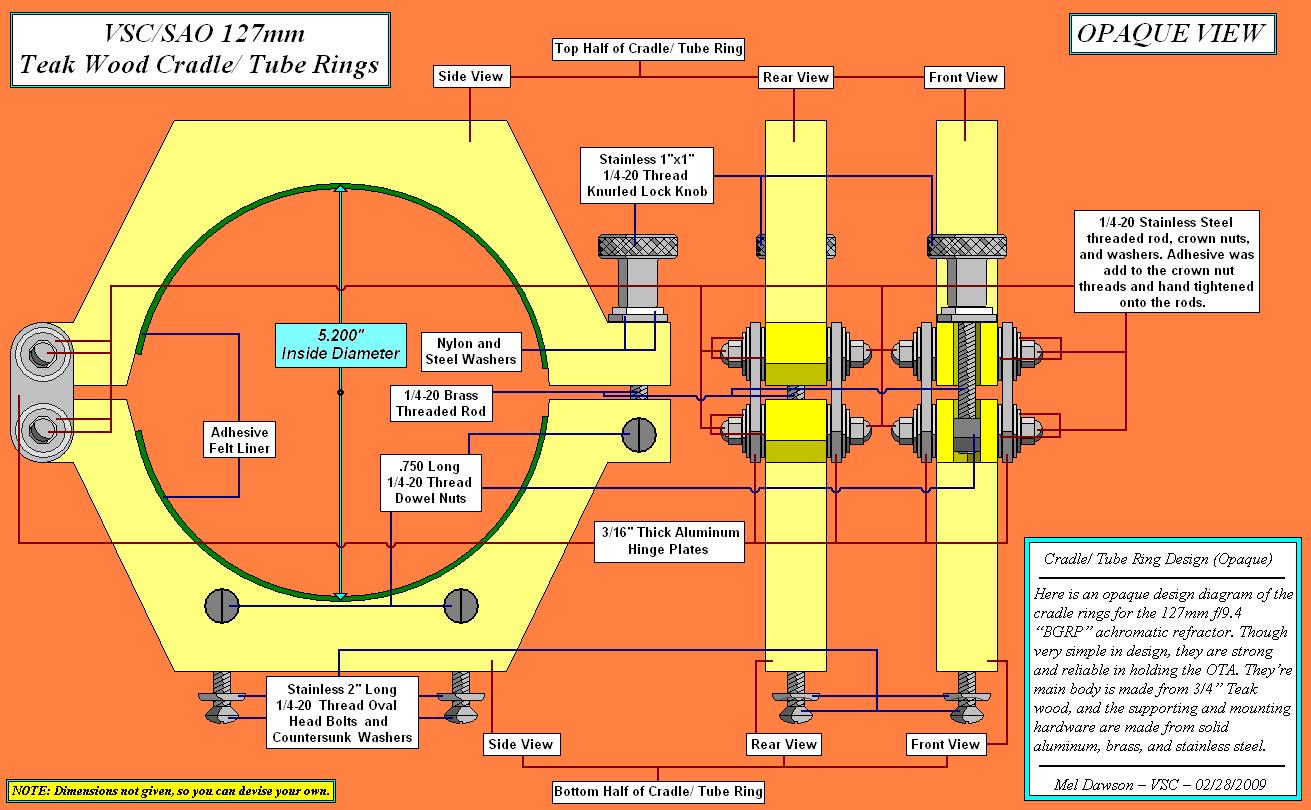

Cradle Rings (Opaque) Cradle Rings (Xray) Dovetail Plate and Bar North Star II Field Tripod Pan-Head (Opaque)
North Star II Field Tripod Pan-Head (Xray) North Star II Field Tripod Pan-Head Top View (Xray) North Star II Field Tripod Legs (Opaque) North Star II Field Tripod Legs (Xray)
  North Star II Field tripod Accessory Tray (Opaque) North Star II Field tripod Accessory Tray (Xray)




On this page, we are hosting a montage of renderings illustrating the schematic diagrams for each of the components that make up the Vega Sky Center's SAO 127mm f/9.4 'Brigadier General Richard Pierce' EQ Refractor telescope as constructed by Mel Dawson. Please click on any specific design diagram of interest above to display its full size image. If you have any questions, please feel free to contact us at:

vsc-astronomers@vega-sky-center.com
