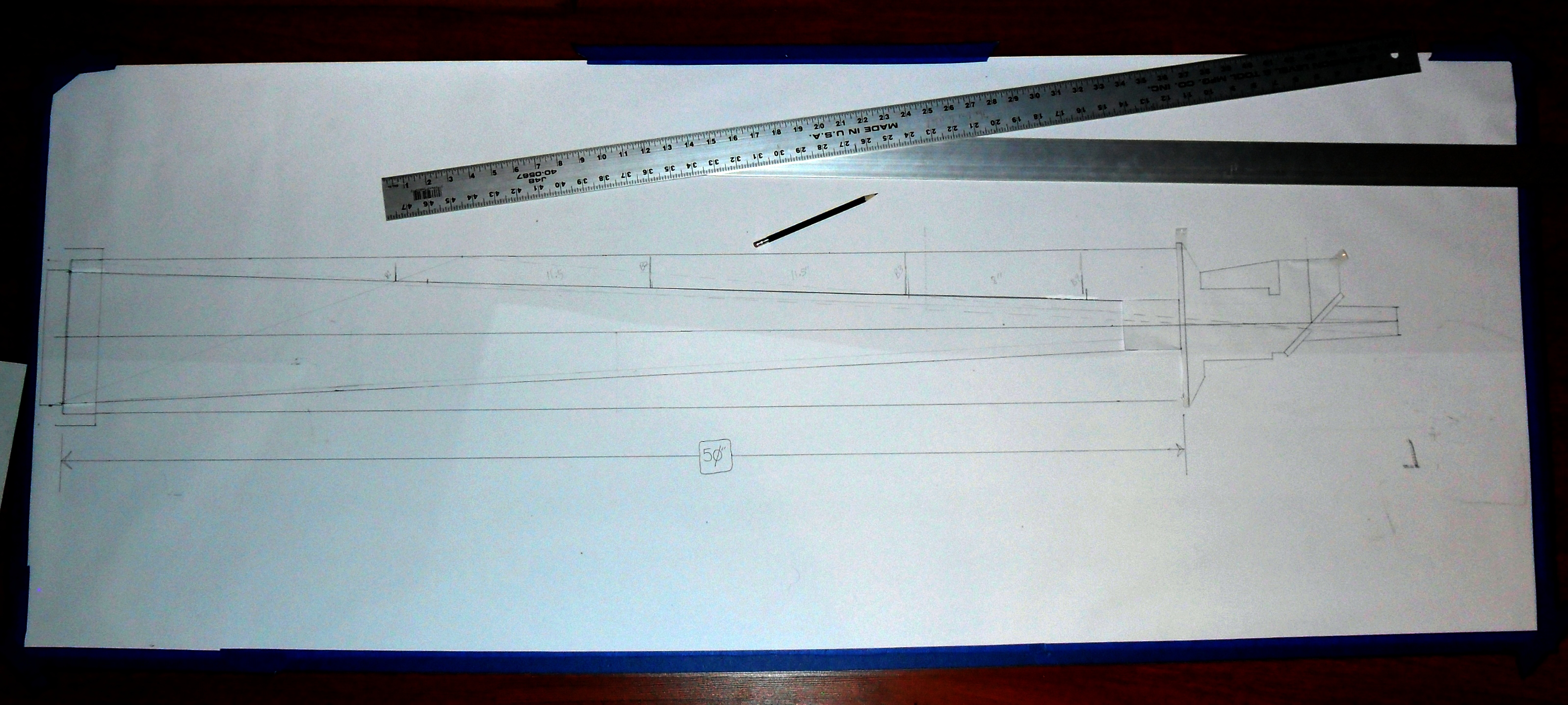

| Taped down
to the floor of my living room, is the full actual size Ray Trace
diagram for the Jaegers 6" f/10 "Gelinda J. Dawson" refractor that I
will be covering the construction overview on here in these numerous
pages. As you can see, I will be incorporating four knife-edge baffles
strategically placed to aid in better contrast, as well as to allow for
a 1.30" Desire Field Size, which would illuminate most CCD chips. To see
more measurement specifications on the "GJD's" design, please go here:
COMPONENT AND RAY TRACE DESIGN
DIAGRAMS
|
|
