127mm f/9.4 OTA Construction - OTA Main Tube Flocking (focuser end flocking 1)

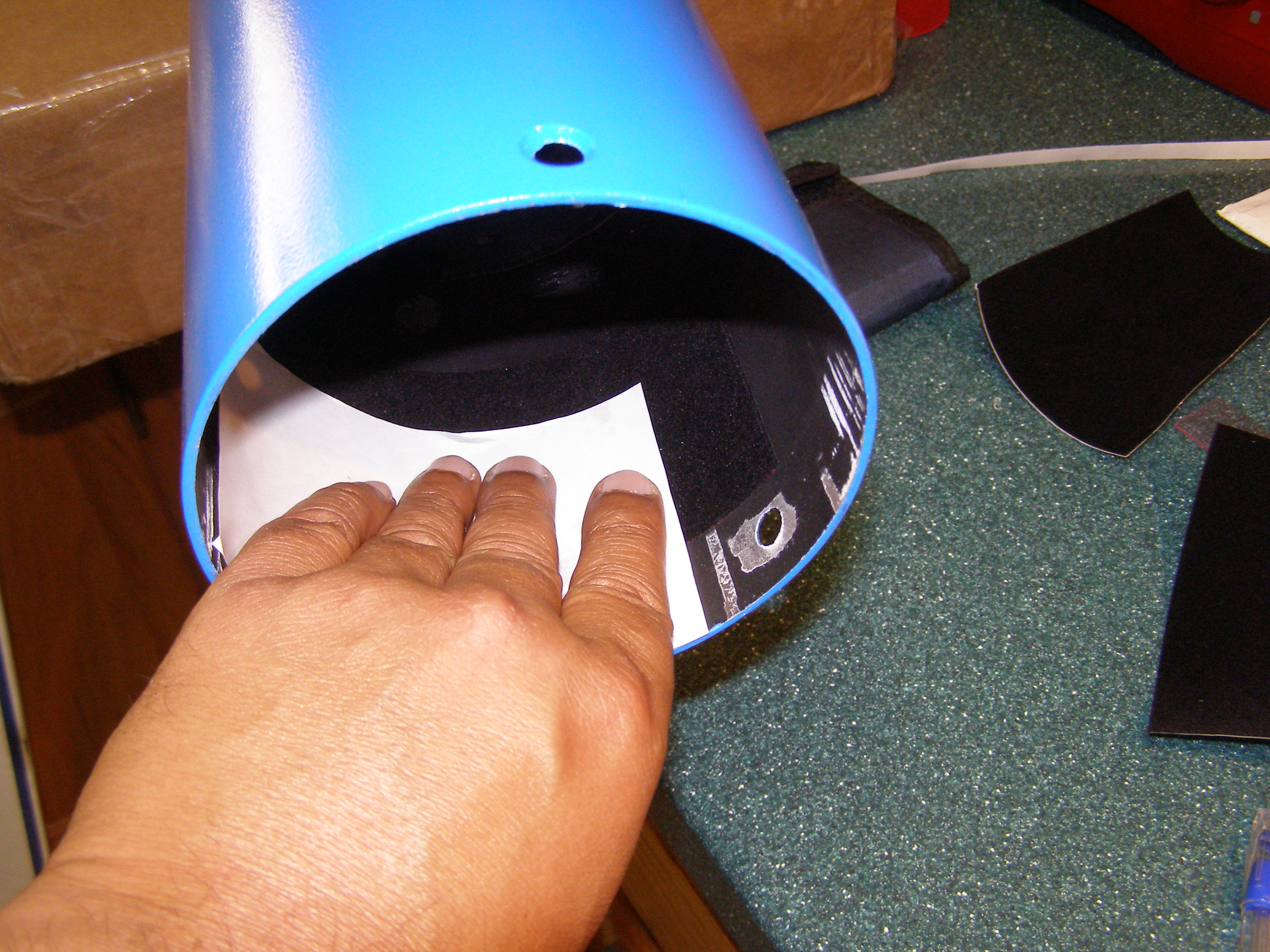

Flocking the area between the last baffle and the focuser with ProtoStar® flocking material... (Click for enlarged view)



Before installing the flocking material, I cleaned away all dust, particulate matter, and/ or residue from the area to be flocked. Using ProtoStar® adhesive flocking material, I covered the area just between the back of the last baffle and the front of the Meade 127ED focuser. It was not a requirement to install it, but it couldn't hurt either. To apply the flocking material, I did it in strips. I divided the material into four even length sections that equaled the tubes internal circumference. Each section was carefully lined up and installed. Just be careful to not let any air bubbles form during installation. It is best to attach it at one edge and work your way to the other using the smooth side of the paper backing to press it into place. Again, do your best to keep bubbles from forming under the material during its application. Before installing the focuser, I waited a day to allow the adhesive to cure; periodically pressing down the flocking material corners and elsewhere if they were to pop up during the curing process.

NOTE: ONCE YOU REMOVE THE BACKING FROM THE FLOCKING MATERIAL, PLEASE MAKE CERTAIN THAT YOU PLACE IT IN THE CORRECT LOCATION ON THE FIRST TRY. THE ADHESIVE IS QUITE TACKY AND WILL GRAB TIGHT WITH THE SLIGHTEST CONTACT.
