127mm f/9.4 OTA Construction - OTA Assembly (side view of the completed OTA)

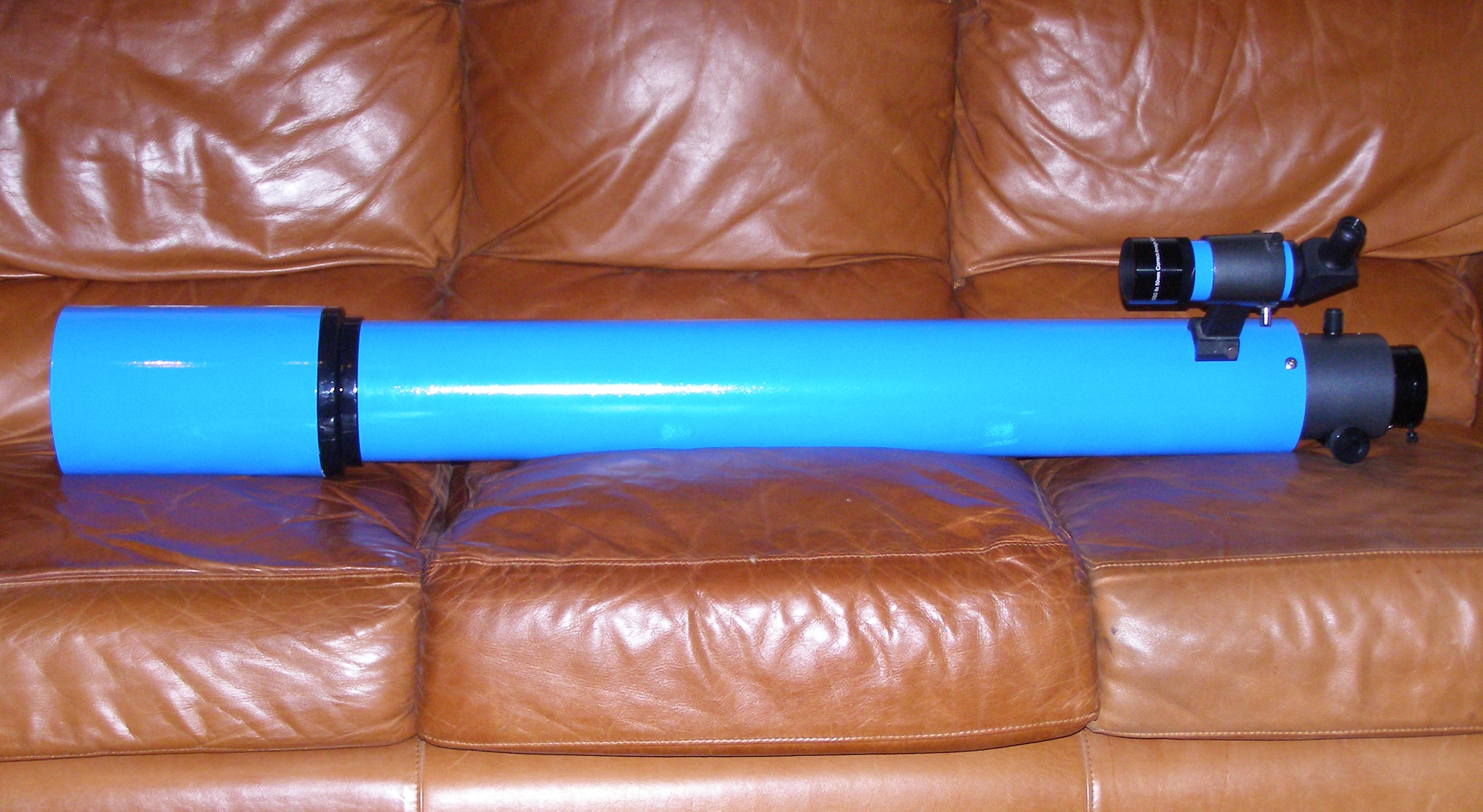

Side view of the completed 127mm f/9.4 "BGRP" refractor... (Click for enlarged view)



Now that the objective and dew shield have been installed, the 127mm f/9.4 "Brigadier General Richard Pierce" refractor OTA is now complete!

Also note that the finder scope has been painted to match the scope. I will cover its restoration later in the 127mm's construction overview.
