RA and DEC Axis's Braking Systems - Completed (Unfinished) DEC Axis Brakes

Click for an Enlarged View

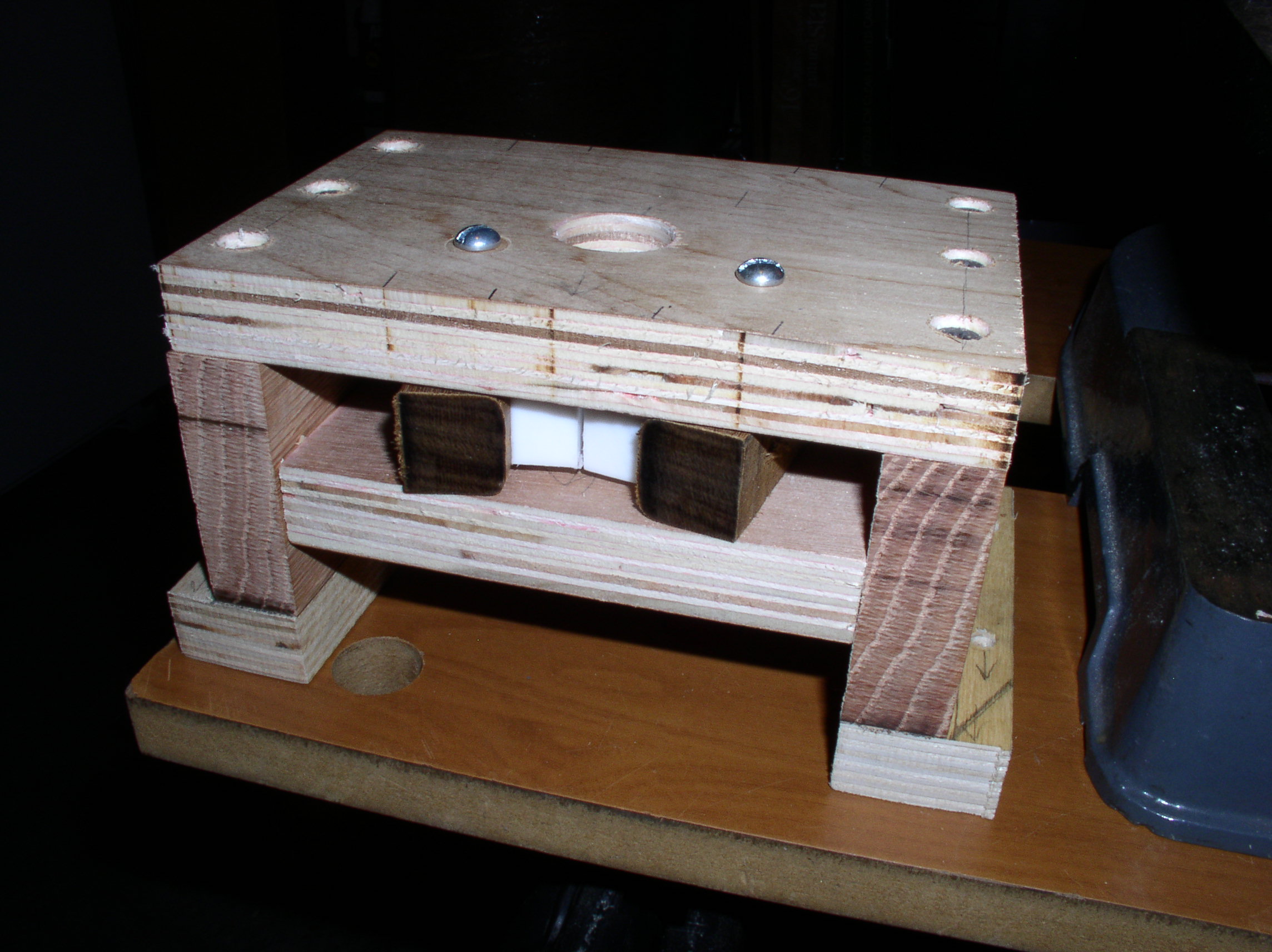

With the Pivoting Arms now installed, here we see one of the two completed Declination Axis Braking Systems. With a few coats of spar varnish they will be ready to be installed on the fork tines.
