Carton 100mm f/13 "MD" OTA Construction - Completed Baffle Rack - Ready for Finishing

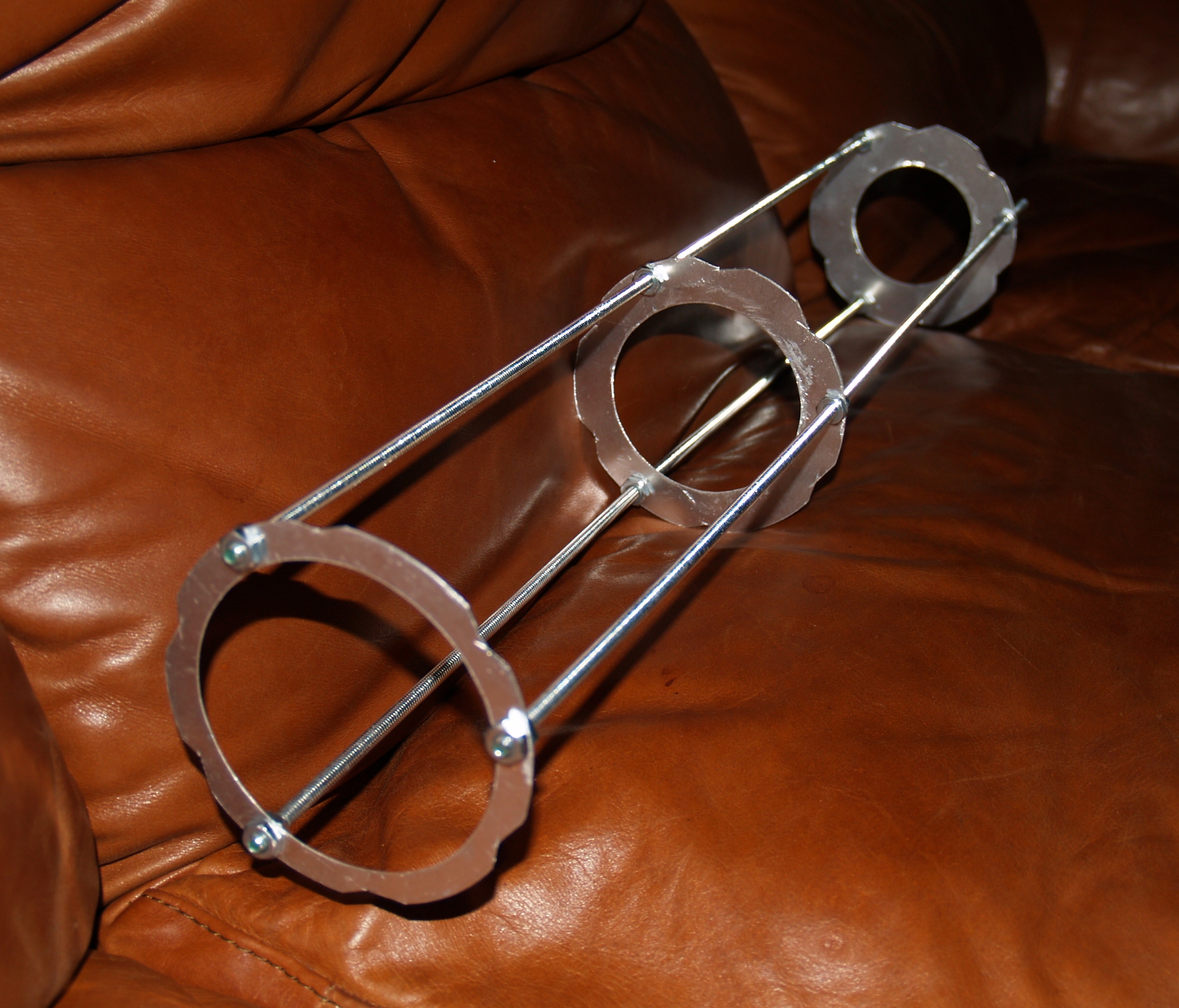

Baffles installed on the three threaded rods creating the baffle rack. (Click to see an enlarged image.)


The completely assembled baffle rack was put together with 1/4-20 zinc plated threaded rod, eighteen nuts and eighteen washers. The notches were cut into each baffle using sheet metal sheers. Now they are ready for finishing.
