Carton 100mm f/13 "MD" OTA Construction - ProtoStar and Baffle Rack Installed in Main Tube

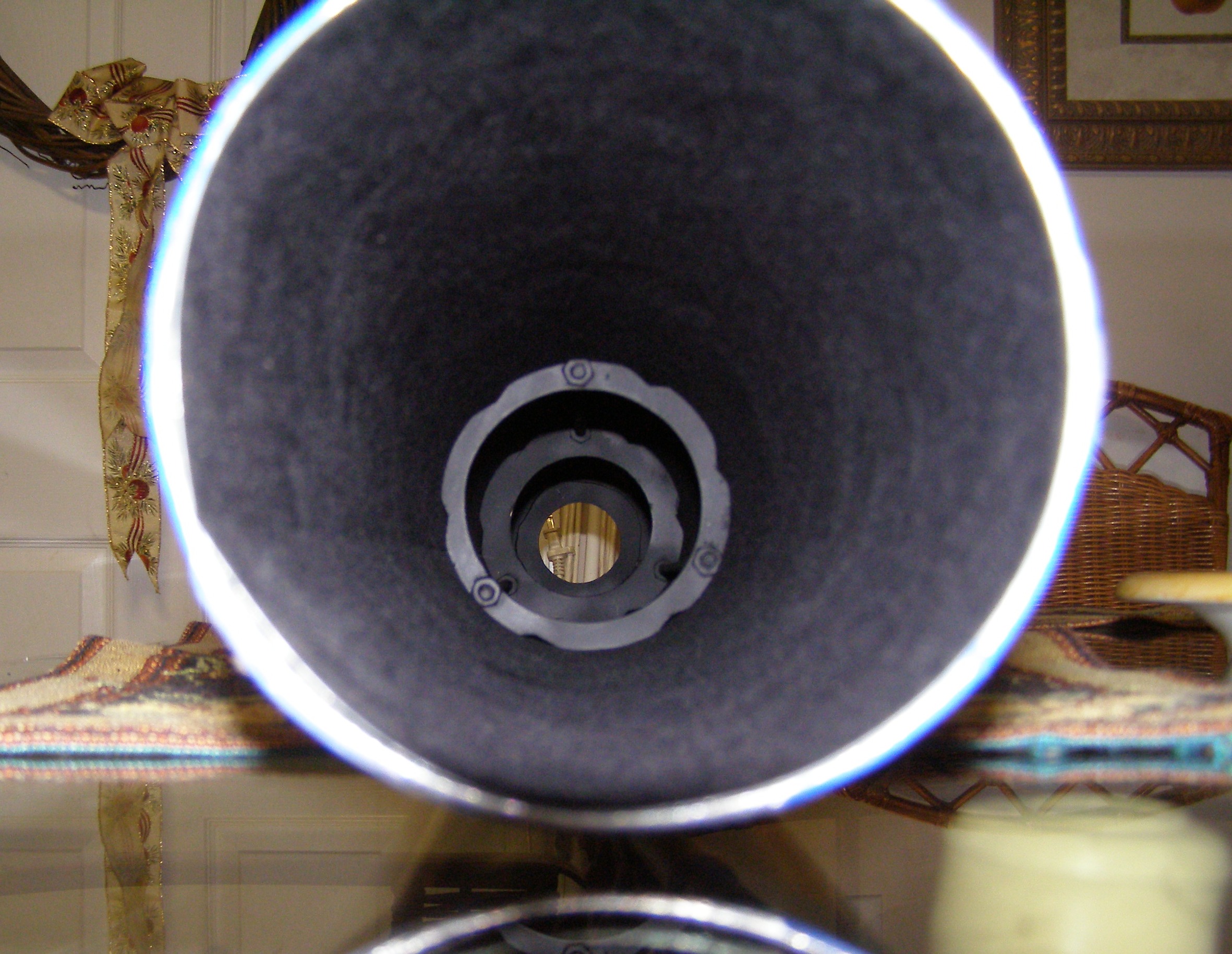

ProtoStar and baffle rack installed in tube. (Click to see an enlarged image)


Now wasn't that worth all the effort! Check out how nicely the Mylar backed ProtoStar flocking material and baffle rack look at home in the main tube. The seams butt together great, and the hole assembly fit perfectly with just enough tension to hold everything in place with it shifting. Those simple formulas proved quite handy in delivering the results shown here.
