127mm f/9.4 OTA Construction - 127mm f/9.4 Objective Lens (unwrapped-front)

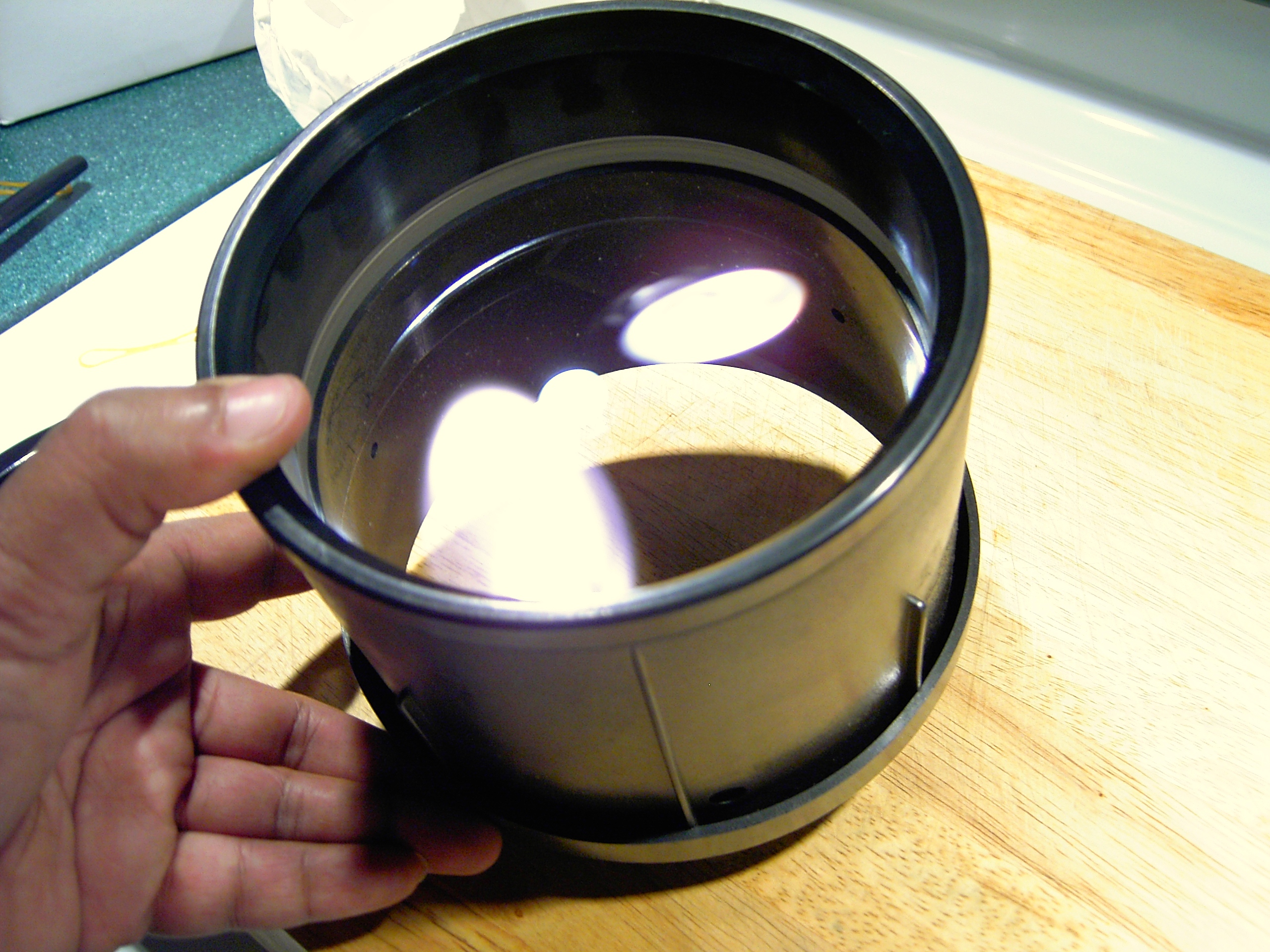

Here is a photo of the unboxed and unwrapped 127mm objective as it arrived from SurpluShed. The doublet is mounted in a rather well made black thermo-plastic lens cell that can not be collimated. The coatings on all four surfaces of the lenses possess a purplish lavender hue, as can be seen in the picture above. This is much like those of the Meade 127ED of old. For more details on how the cell is designed, please checkout the diagrams homepage for this project located here.
