Carton 100mm f/13 "MD" OTA Construction - GSO Crayford Focuser and Adapters

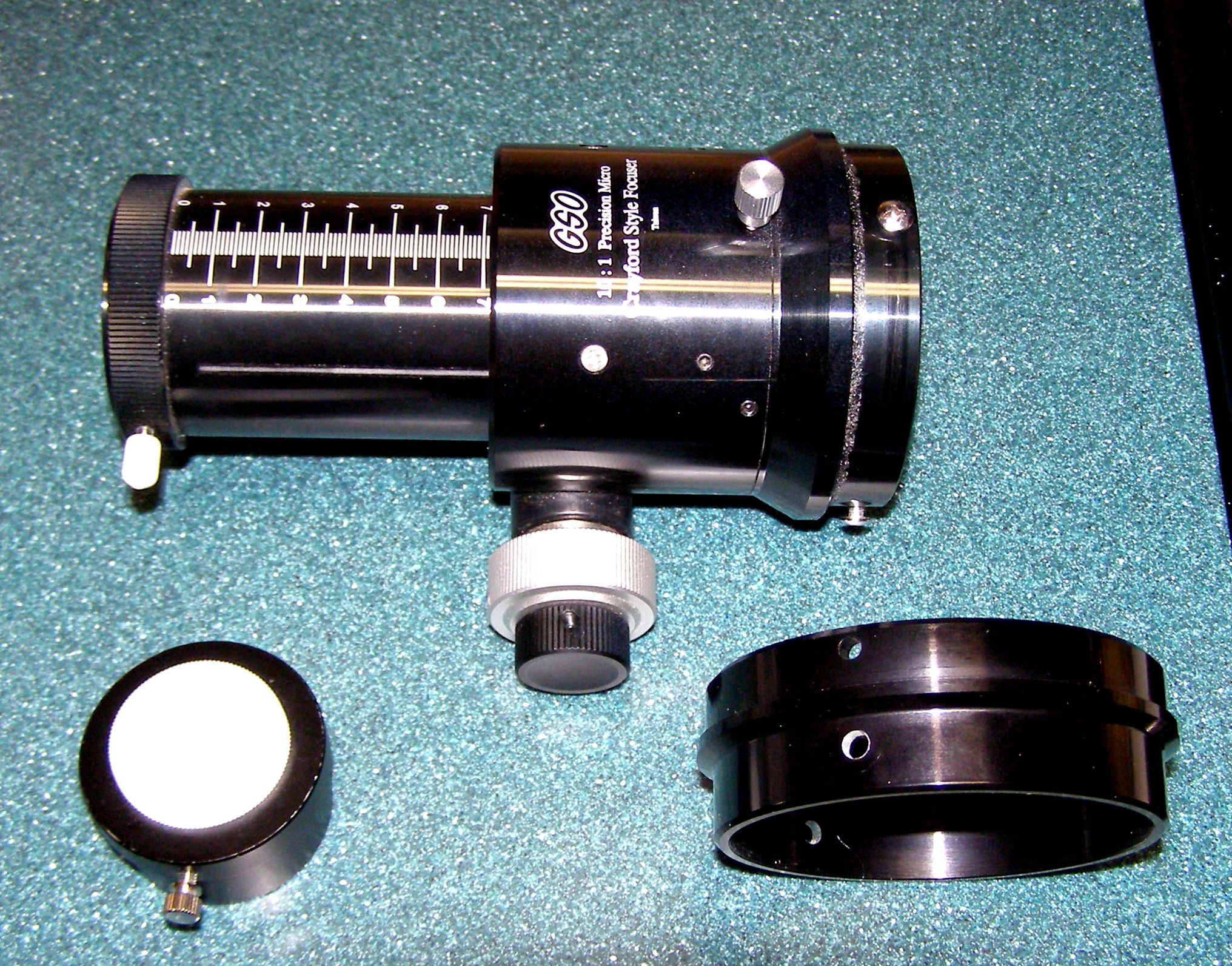

GSO Crayford focuser, 2" to 1.25" adapter, and focuser tube adapter.



At the focal plane, I chose to go with GSO components. Dual-speed 10:1 Crayford w/ 2" to 1.25" adapter, and J102 86.5mm to 98.5mm Crayford focuser-to-tube adapter. Although they are modestly priced, they possess functionality much like the big names, such as Moonlight and Feather Touch. These components are well made and are all are anodized aluminum. The only plastic you will find is the 1.25 plug for the eyepiece adapter and the spacer shroud that is used to attach the dual-speed unit to the main body of the Crayford focuser. The ball bearings are sealed stainless steel (four in all) and work silky smooth when the focuser is properly adjusted. The drawtube is calibrated in millimeters and has just over 70mm of travel. A nice set indeed.
