Fork Mount Construction - Installation of Rear Fork Tine Fascia

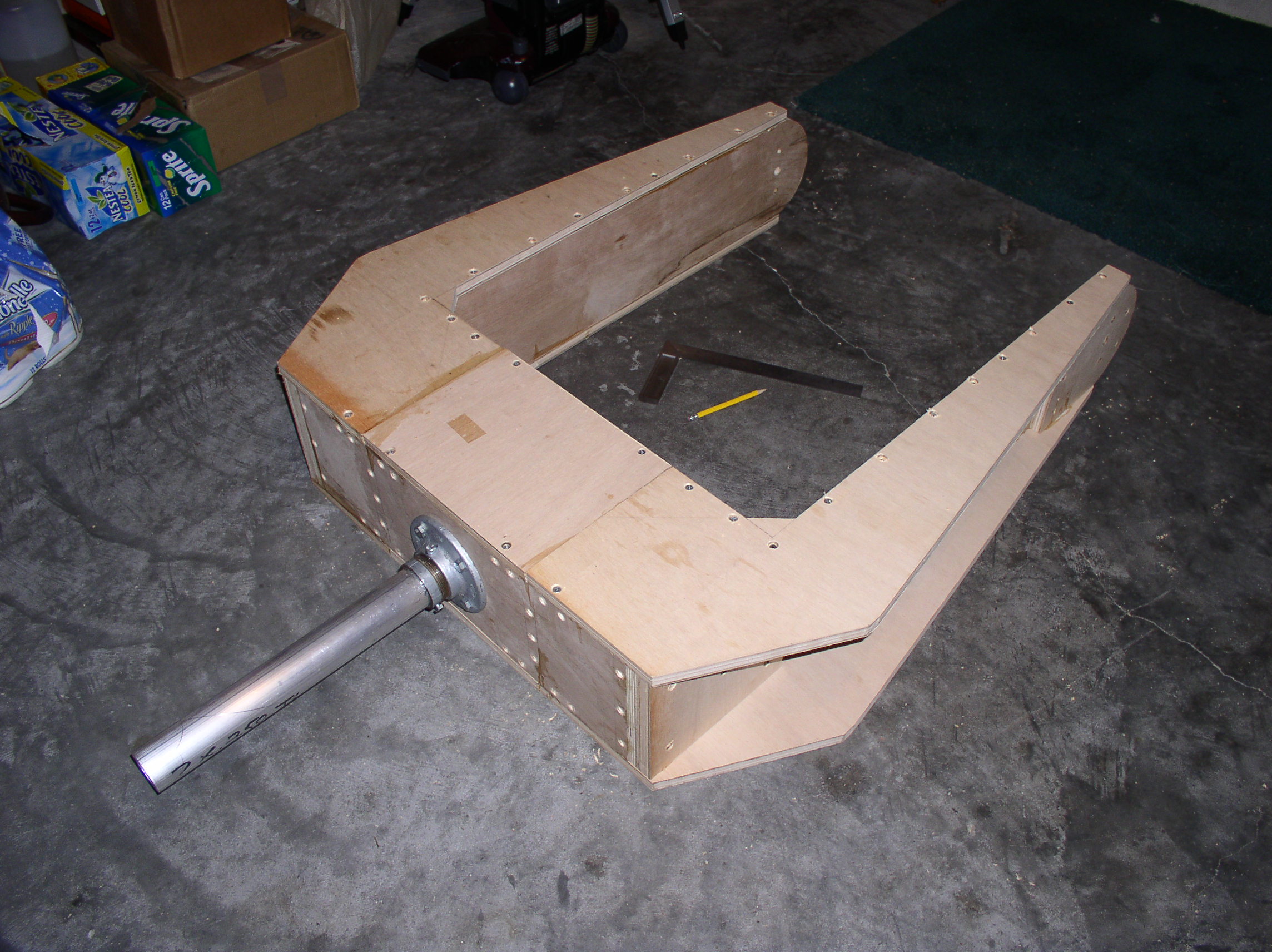

Installation of Rear Fork Tine Fascia (Click for enlarged view)


The fork mount now takes on a typical look as the rear fork tine fascia plates and central divider are installed to the fork chassis. Again wood glue and woodscrews are instituted in joining these pieces. The main structure of the mount will be completed once we add the front-to-rear fascia support braces in the next step.
