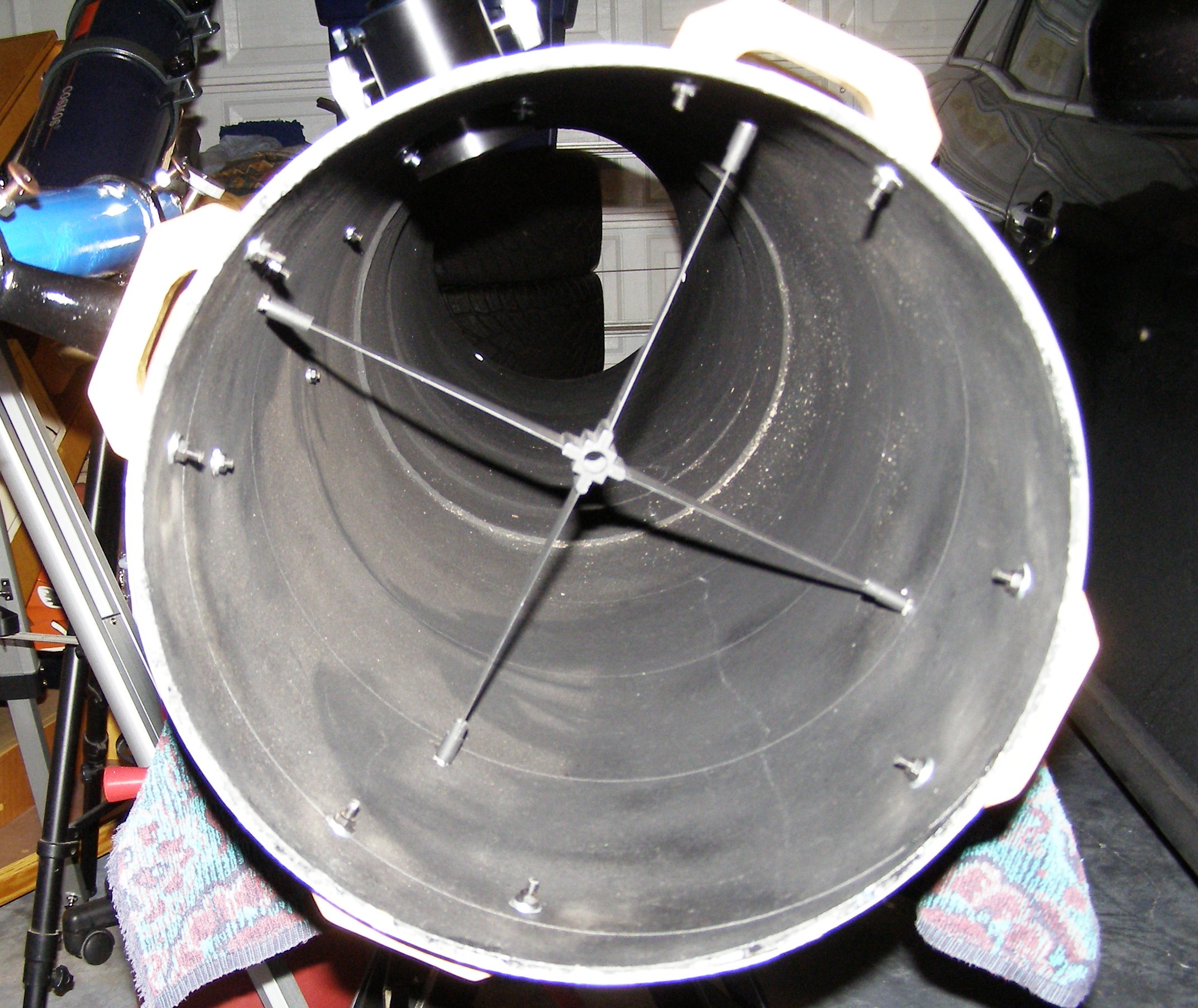

| This
is a front end "down-the-tube" view of the inside of the
12.250" OD tube. Using the brackets shown earlier, the Spider Vane
has been attached ruggedly to the inside of the tube. An offset of
.10" of the "spider/ secondary" assembly will be instilled to capture the entire
cone of light coming from the primary for the brightest illuminated
field
possible.
Quite
dusty here in the photo above, the tube's insides will be meticulously vacuumed and thoroughly
cleaned after I shear off the ends of the screws holding
the external components with my Dremel® tool. Then, the Secondary/ Diagonal Holder
will be installed. |
|
