127mm f/9.4 OTA Construction - 127mm f/9.4 Objective Lens (edge-blackening)

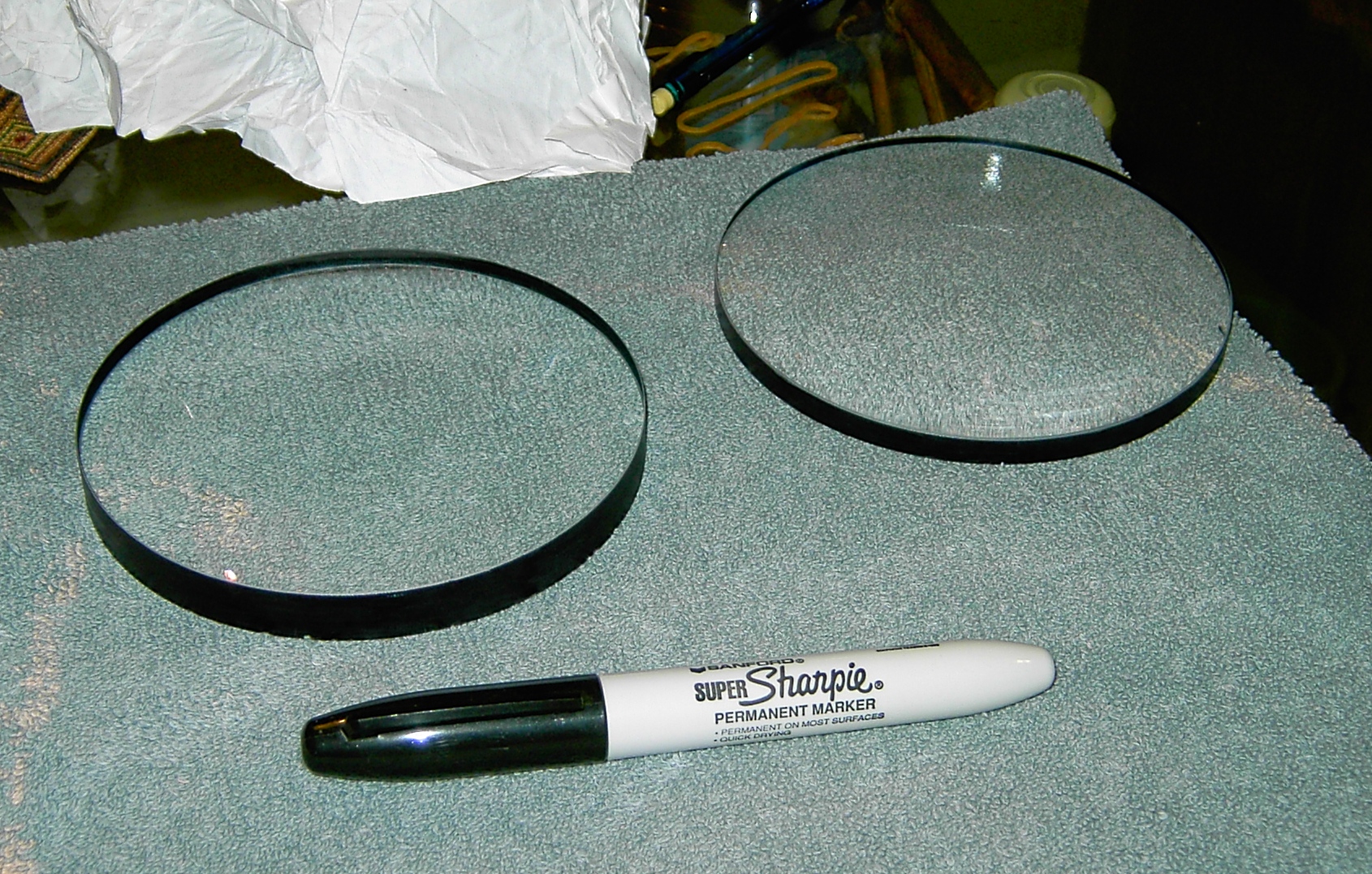

The 127mm f/9.4 SurpluShed Objective removed from its cell and edge-blackened... (Click for enlarged view)



When I purchased the mounted 127mm f/9.4 objective from SurpluShed, the edges of the elements were not blackened. This is not a requirement, but I wanted to do all I can to pull out every bit of contrast I could get from this instrument. So I did the edge blackening myself using a SharpieŽ marker. If you plan on doing the same, BE VERY CAREFUL not to get the marker on the faces of any of the lenses. Not a major issue, since it can be removed with alcohol. But who wants to do that! Also work in a very safe place and use a soft terry cloth towel, or other none scratching material to support your lens elements.
