127mm f/9.4 OTA Construction - OTA Internal CD Knife-Edge Baffles (front of baffle close-up)

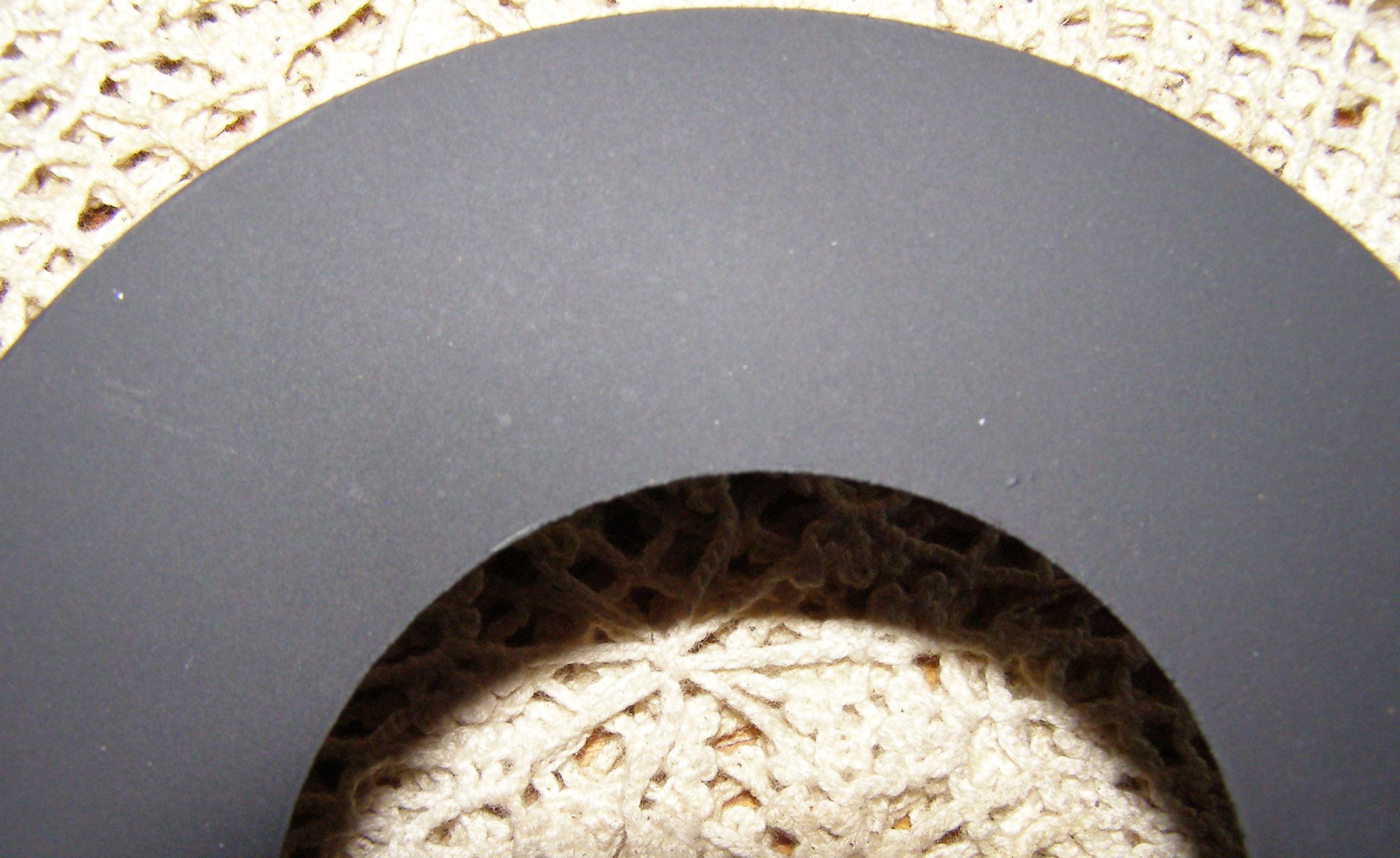

Close-up of the front of one of the finished baffles to show detail... (Click for enlarged view)



Note how sharp and crisp the knife-edge is in this frontal view of one of the baffles. This side will face the objective. When the focal cone goes through the hole, no light will have a chance to be deflection off of any flat surfaces that would degrade contrast. Now that the baffles are done. Let's get started installing them.

As always, please contact me at the email address below if you have any questions of concerns.
