Fork Mount Construction - Bottom-of-Bottom of Flange RA Axis Box

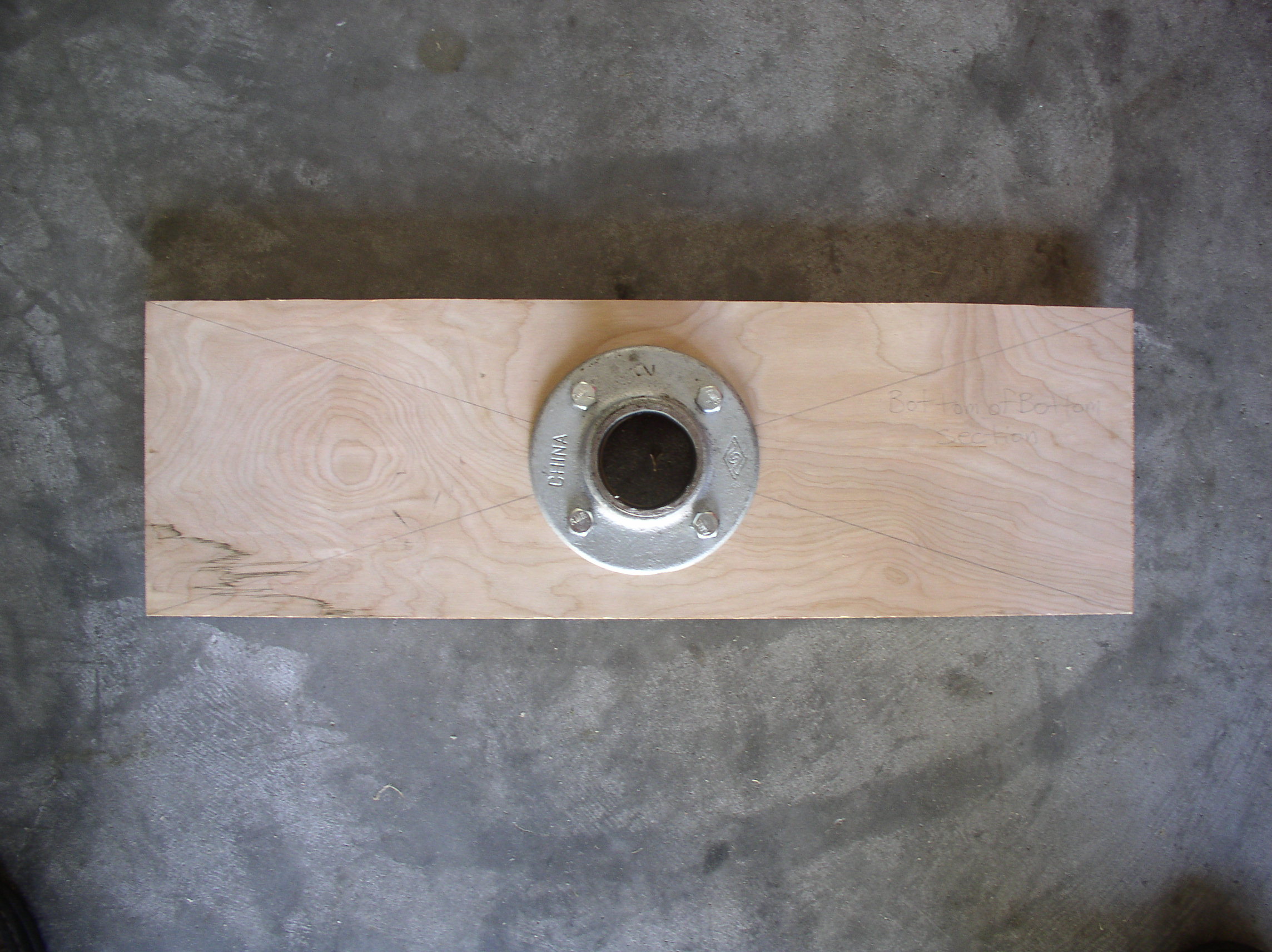

Bottom-of-Bottom of Flange RA Axis Box (Click for enlarge view)


Now the top section of the RA Axis box has been flipped over to reveal the flange. Keep in mind that the flange on this section will be concealed inside of the box. This allows for slightly shorter fork arms in order for the back end of the telescope to swing through. In addition, it looks a lot better. Now lets move on to attaching the RA Axis box internal sides by clicking the purple arrow that points to the right.
