Fork Mount Construction - RA Axis Box and Fork Arms Chassis

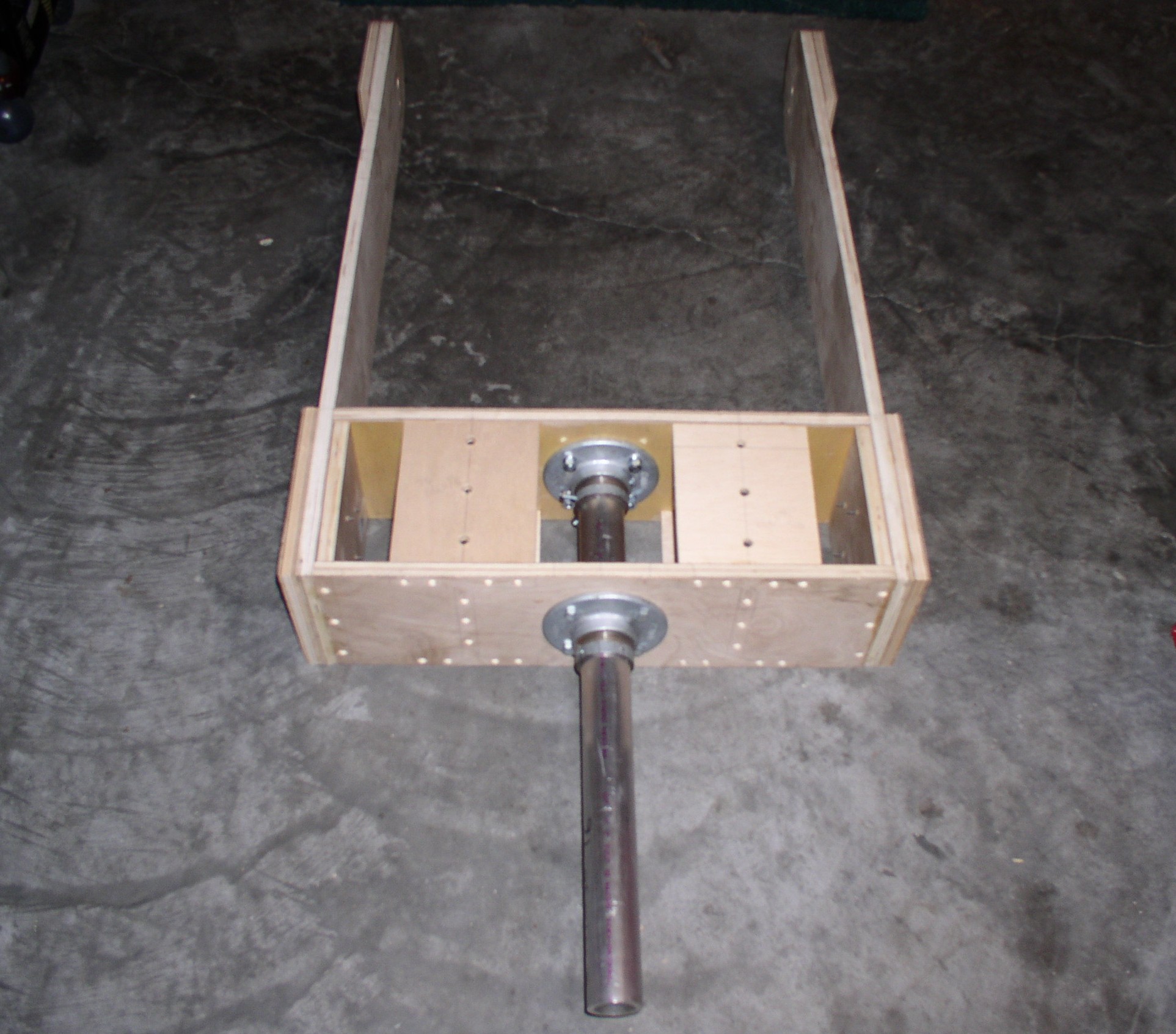

Right Ascension Axis and Fork Arms Chassis (Click for enlarged view)


The completed inner chassis of the Fork Mount is now complete. It is now time to install the Fork Tine Fascia to further enhance the strength and eliminate the outward flexure of the fork arms. Once the fascia is installed the mount will take on a more typical looking appearance.
