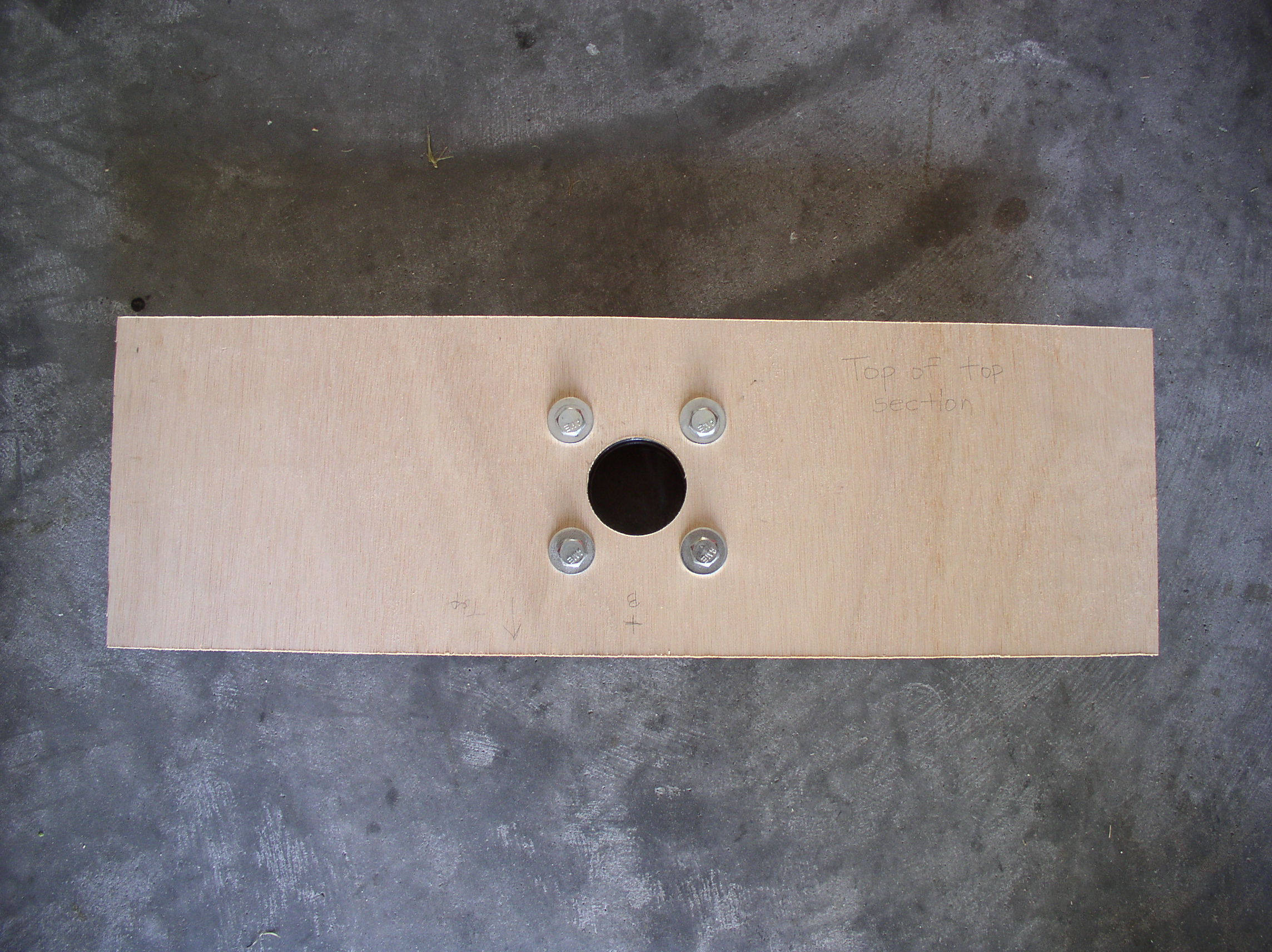

We
are now ready to install the top panel of the RA Axis Box. This piece has the
same dimensions as the bottom of the RA Axis box. The only difference being in that the flange will be mounted inside of the RA
Axis box. Before the top is attached to the RA Axis Box, the T-6061
Aluminum shaft will be installed to the top section as noted in the
previous slide.
|
|
